SCH PSP 30 Litre Power Sprayer – Push Or Towed – Spray Width 36″

The SCH PSP power sprayer is the most popular model for sports grounds with small to medium sized courts, is versatile and easy to operate. The unit is ideal for spraying paths, gardens and more.

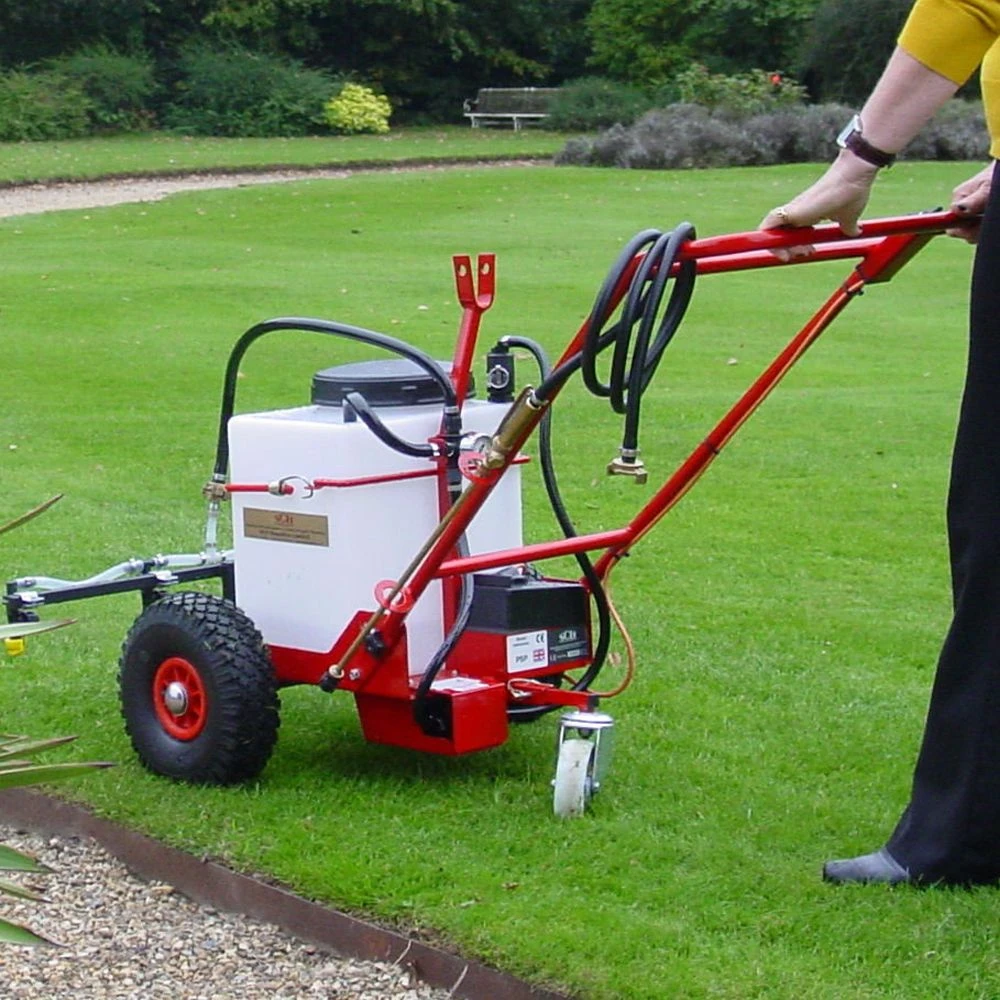

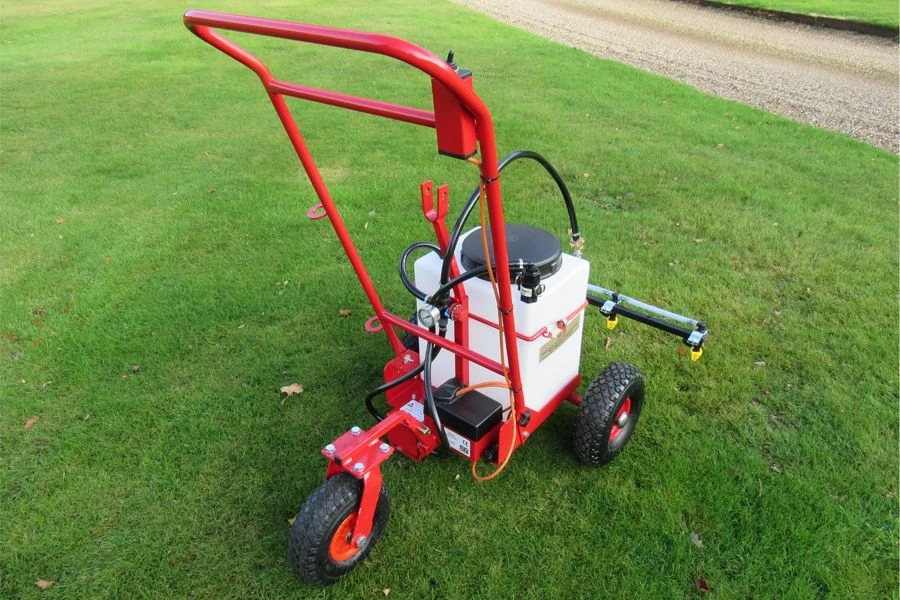

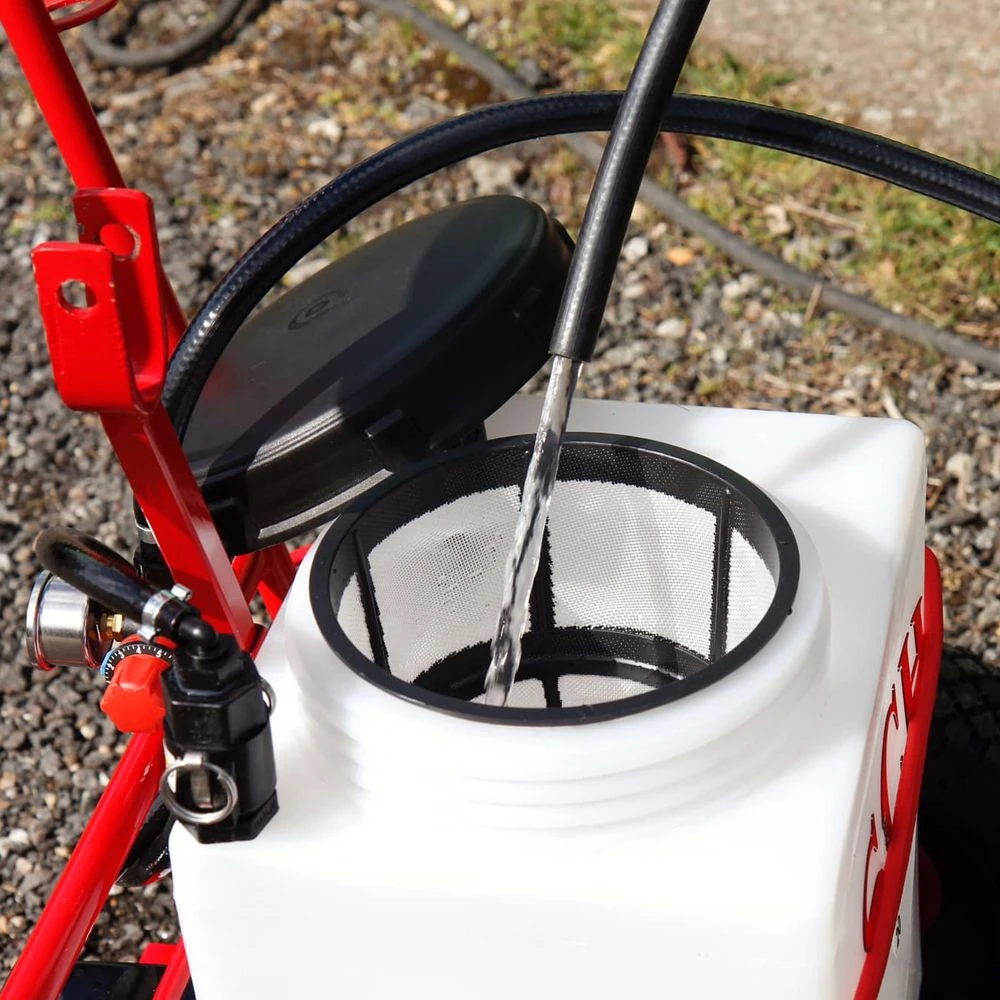

The sprayer has a maximum capacity of 30 litres and is mounted on a three wheel robust tray chassis.  The two leading wheels are pneumatic; the rear castor wheel acts as a line marker.  The pump is a 12 volt diaphragm pump powered from its own integral battery (a charger is supplied with each machine). The average spray time per battery charge is approximately 5 hours normal spray use (3.5 hours intermittent); this is for continuous spraying so on/off time, refill and movement actions will enhance the overall spray time.

A pressure gauge and a by-pass regulator are fitted for the hand lance. The pump is run on a pressure system which means when the spray is shut off, the pump shuts down; open and the pump restarts.

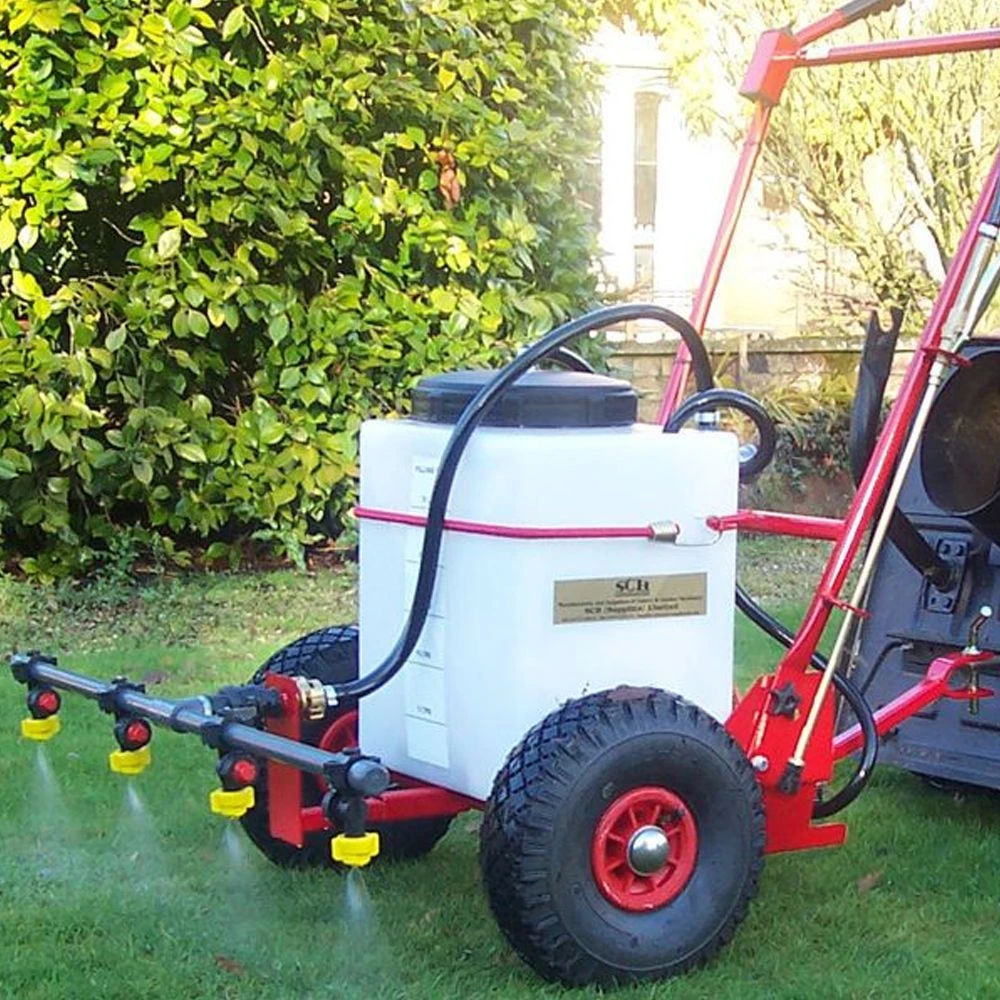

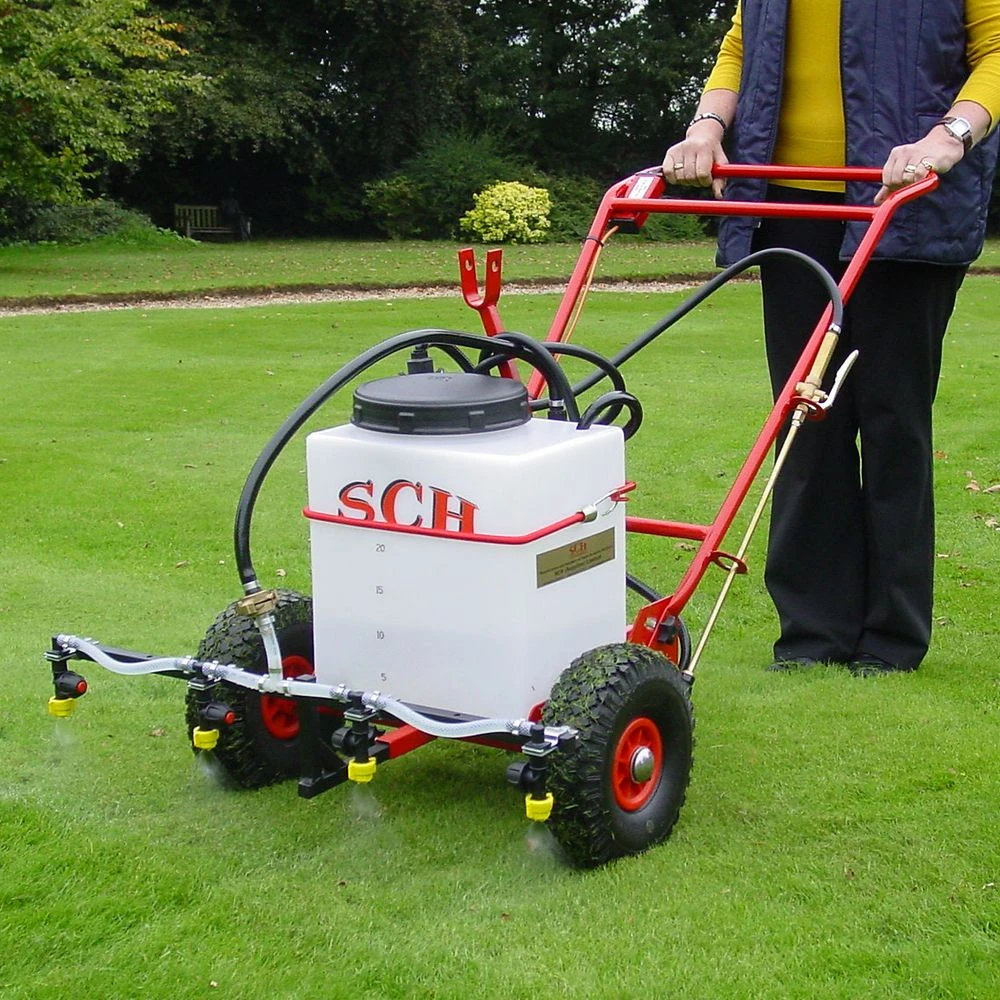

The low to ground four nozzle boom minimises drift and therefore close to edge work can be carried out.

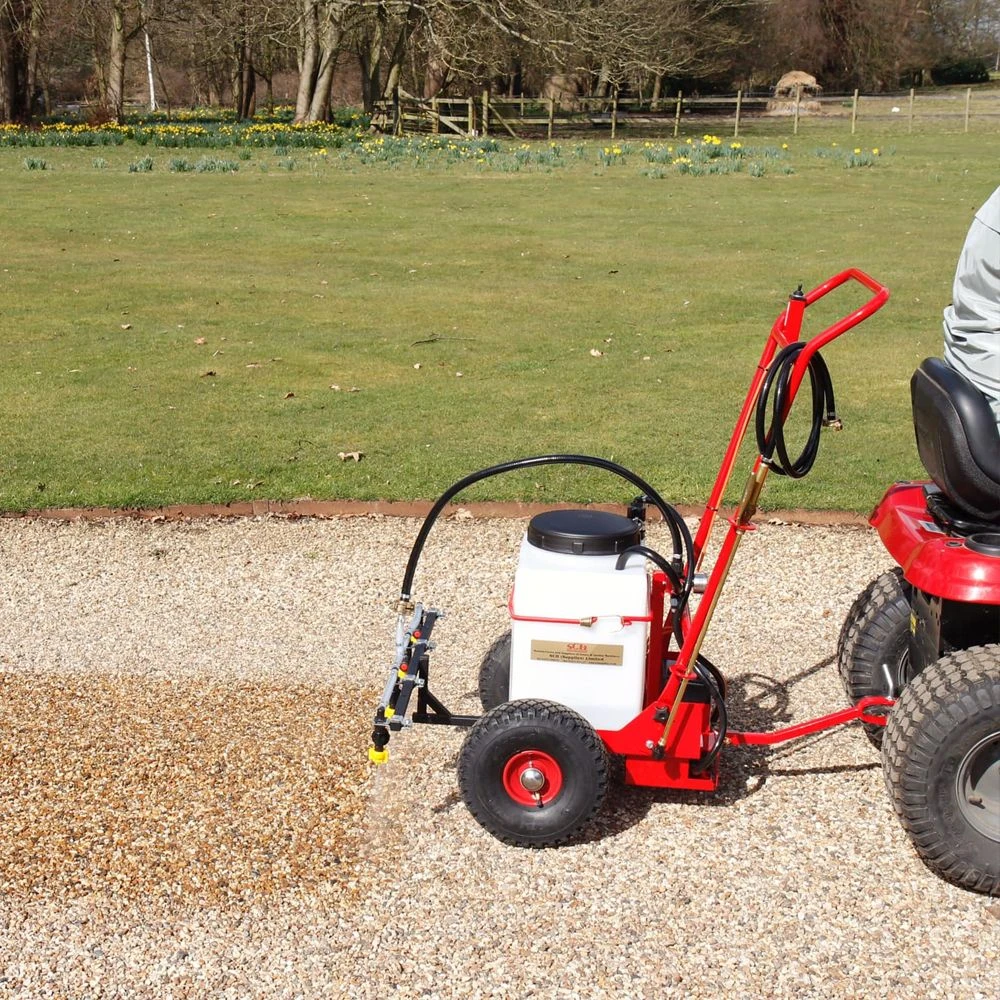

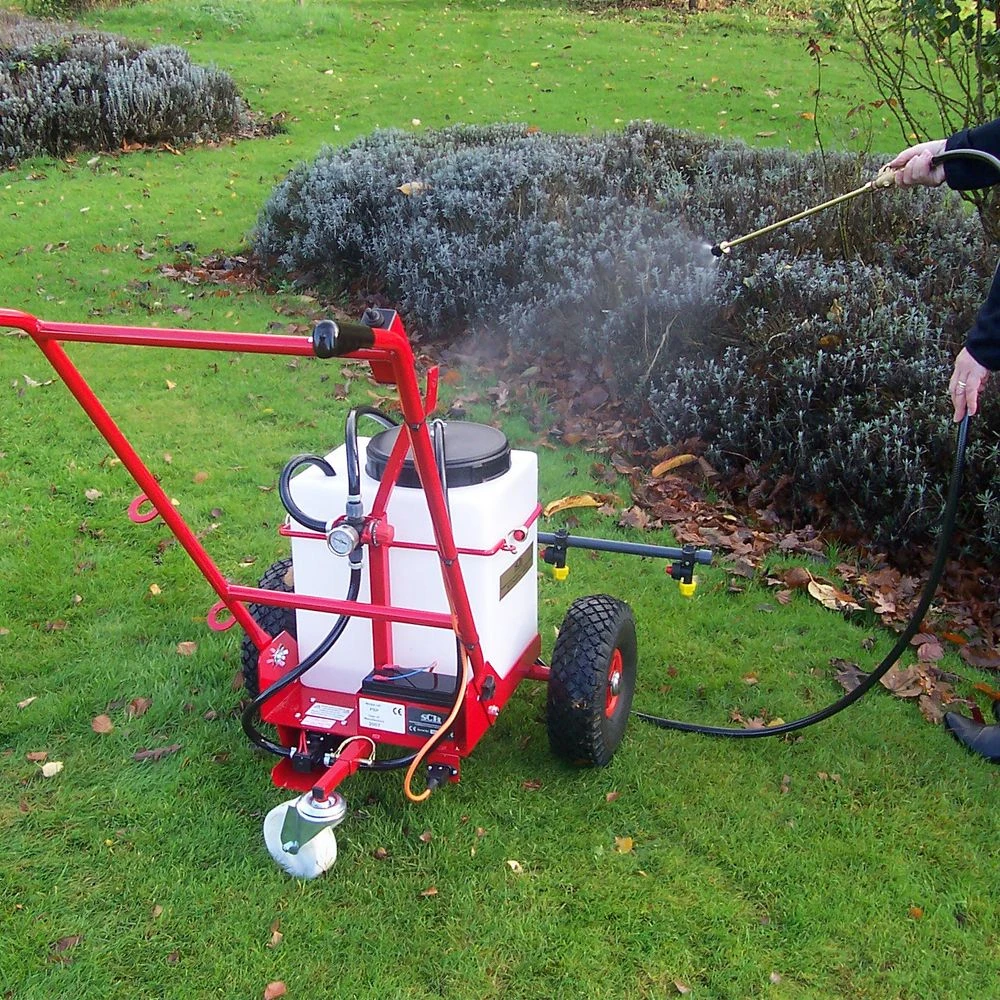

A brass trigger lance is supplied for spot spraying.  The handles are adjustable to suit the operator.  A tow bar is supplied with each machine.

Optional Extras (see related items below):

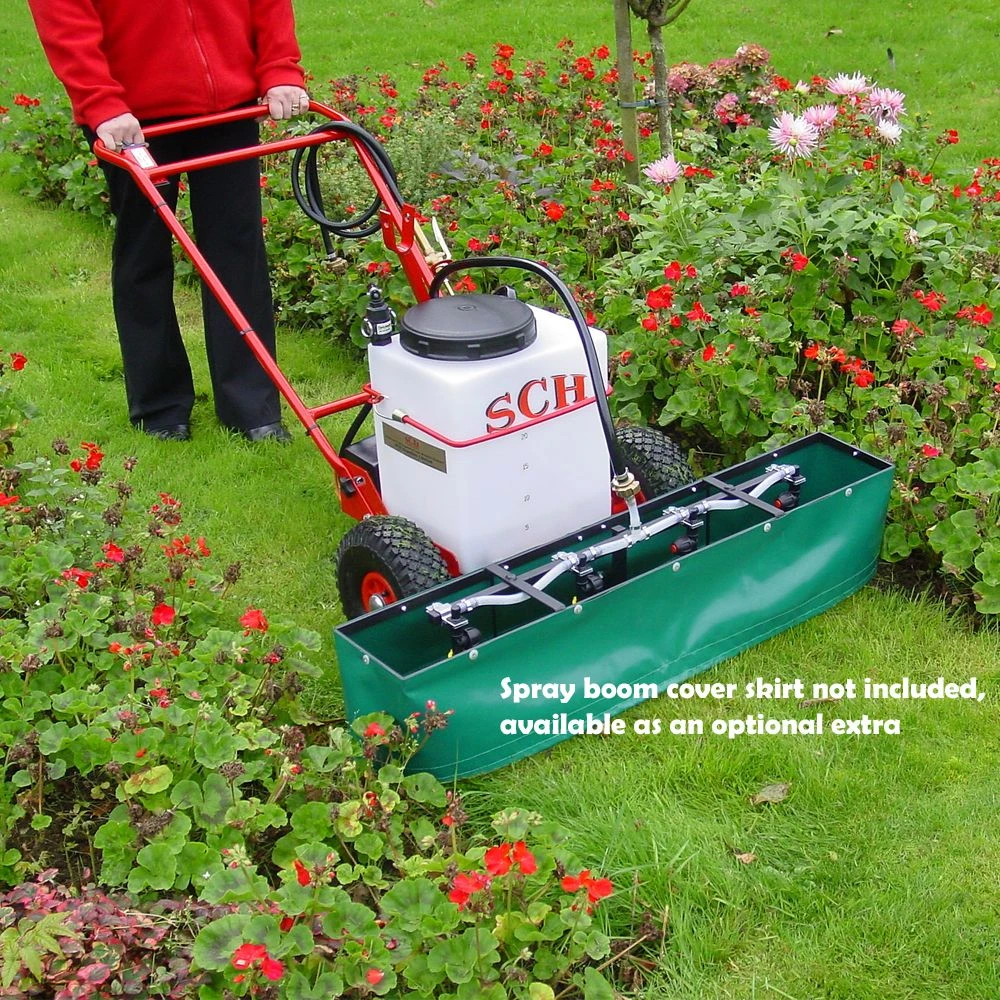

• Spray boom cover
• Dribble bar
• Extension to brass hand lance
• Delivery hose
• Wider spray coverage booms
• Pumps up to 18lpm output can be fitted
